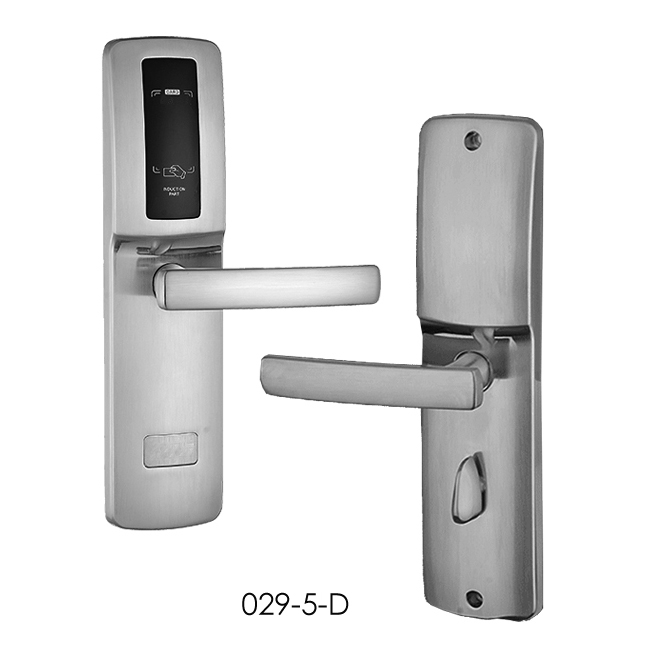

029-5-D

Quick Overview

    • Applicable with European standard mortise. Or ANSI mortise
    • Anti-panic exit function

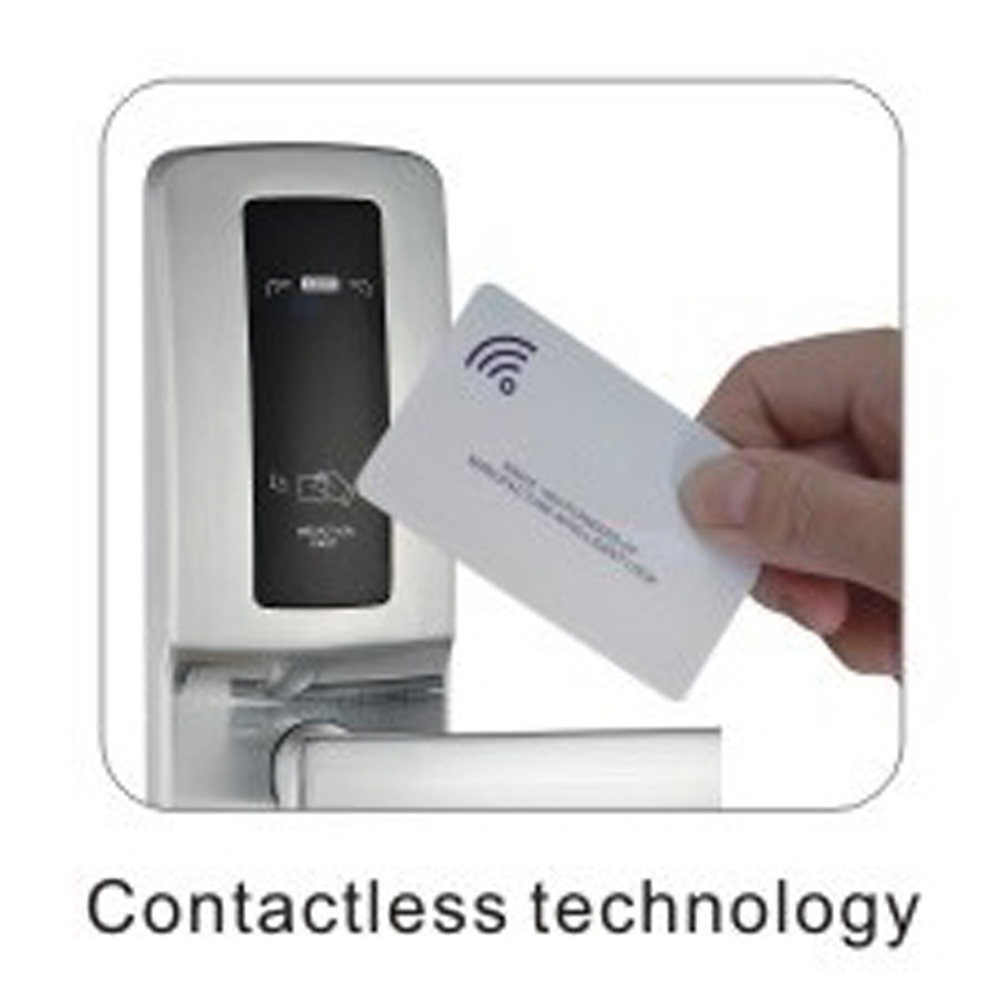

    • Detect card mode: Advanced Micro Wave
    • Can work with software or without software (should specify when give order)
    • Suitable for Hotel, Commercial office, School, Government, Hospital, Marine, Residence
    • Applicable with European standard mortise. Or ANSI mortise
    • Anti-panic exit function
    • Detect card mode: Advanced Micro Wave
    • Can work with software or without software (should specify when give order)
    • Suitable for Hotel, Commercial office, School, Government, Hospital, Marine, Residence

SPECIAL FEATURES :

    • Applicable Card: Temic, Mifare, Em/ID
    • Material: Zinc Alloy with chrome plating or PVD plating
    • Mechanical Key Override: Yes
    • Battery: 4 AAA alkaline batteries 18months old in normal state
    • Indication: Light, Sound (beep, Music or music option)
    • Deadbolt Indication: Blue and red light when touch card
    • Unlocking Record for Trail: Yes
    • Low Voltage Warning: Yes
    • Passage Mode for Meeting Room: Yes
    • Static Consumption: 12uA
    • Dynamic Consumption: 300mA
    • Humidity: 20% - 80%
    • Working Temperature: - 10°C - 60°C
    • Handle Optional: NONE
    • Packing: 6pcs/ctn, 19KG/ctn, 51*36*35cm

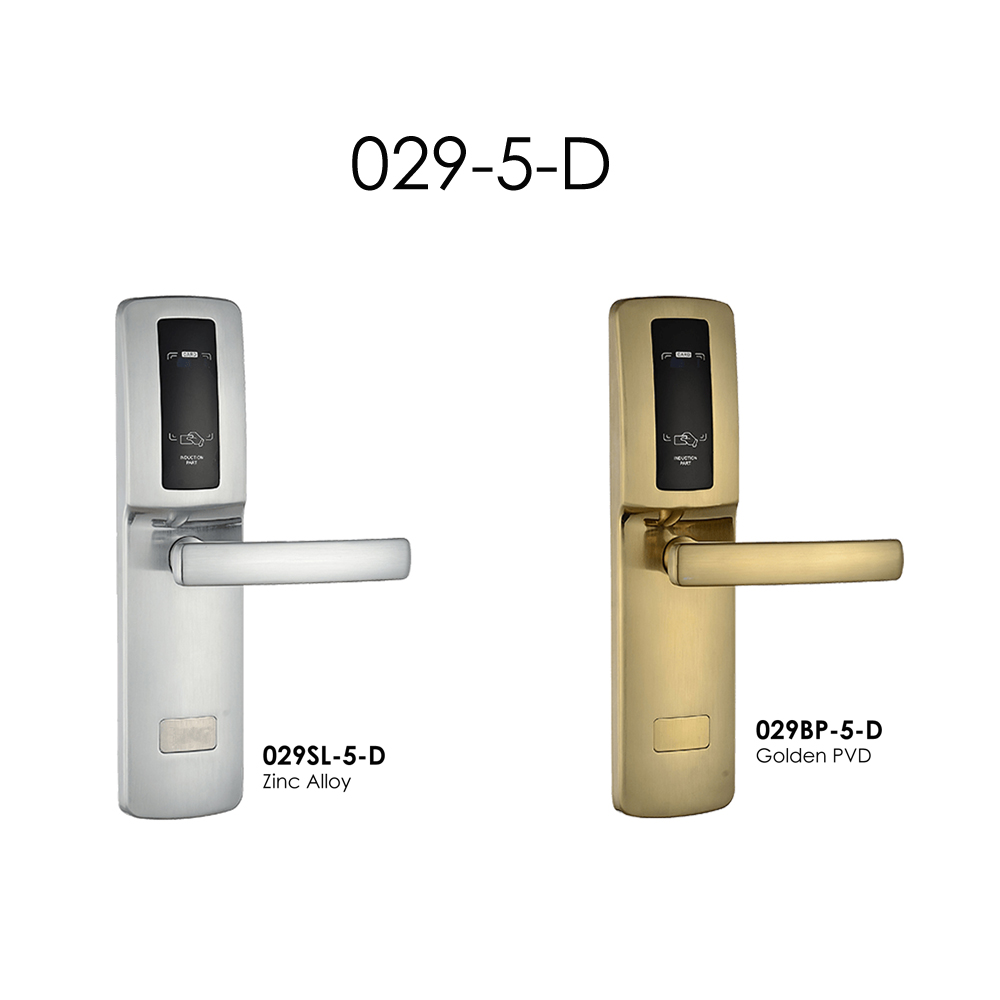

Available Colors in:

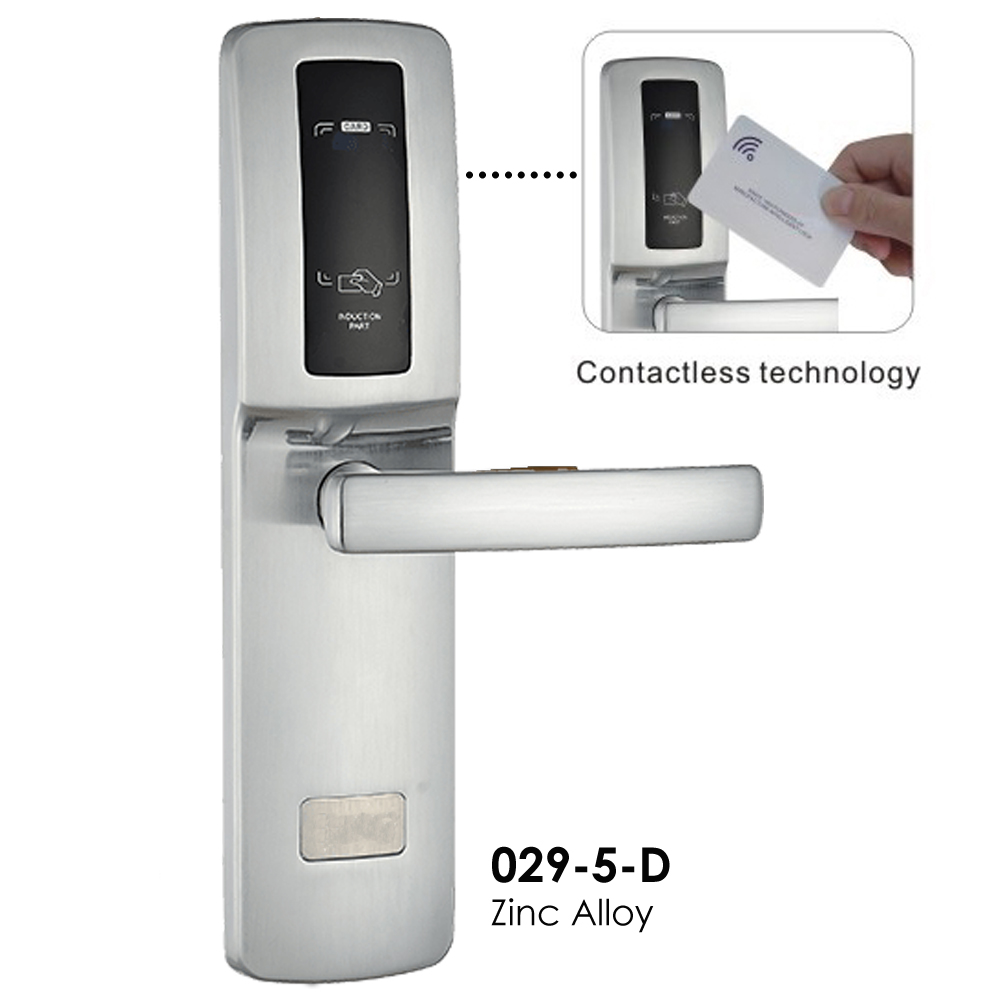

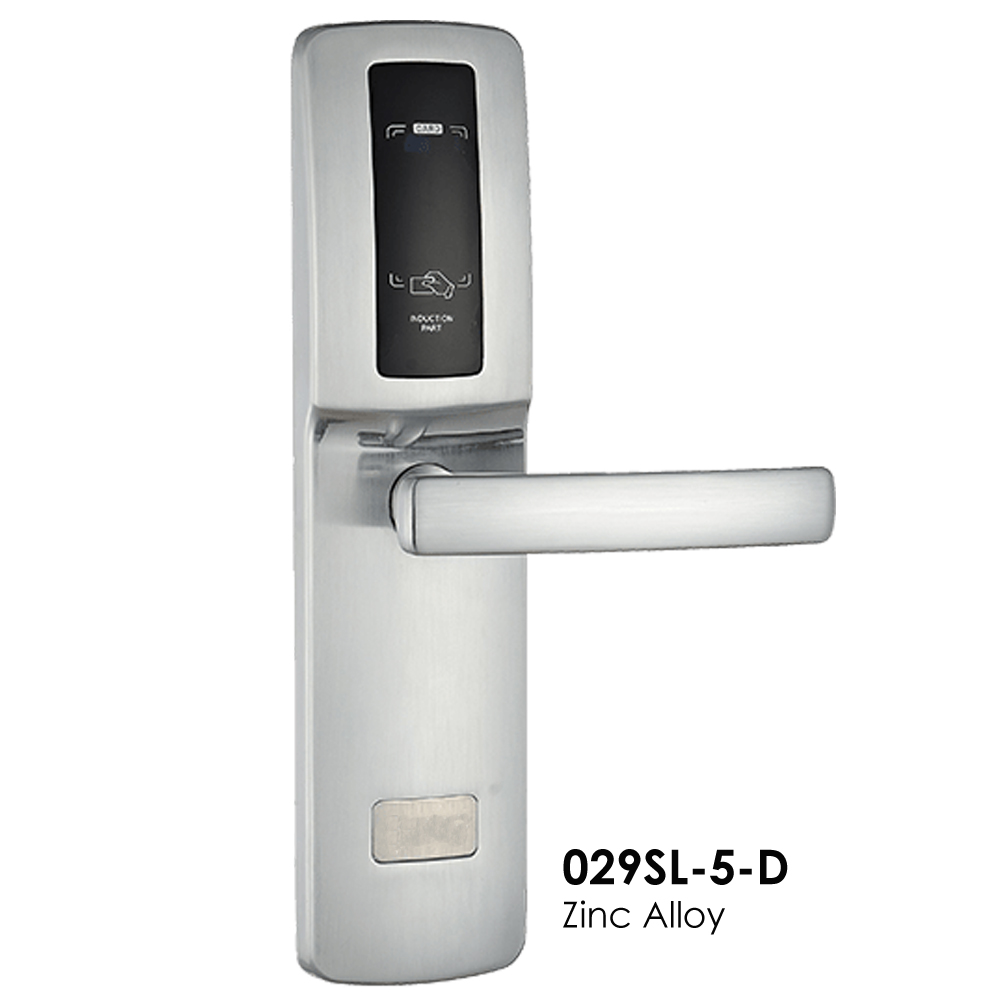

      1. Chrome Plated

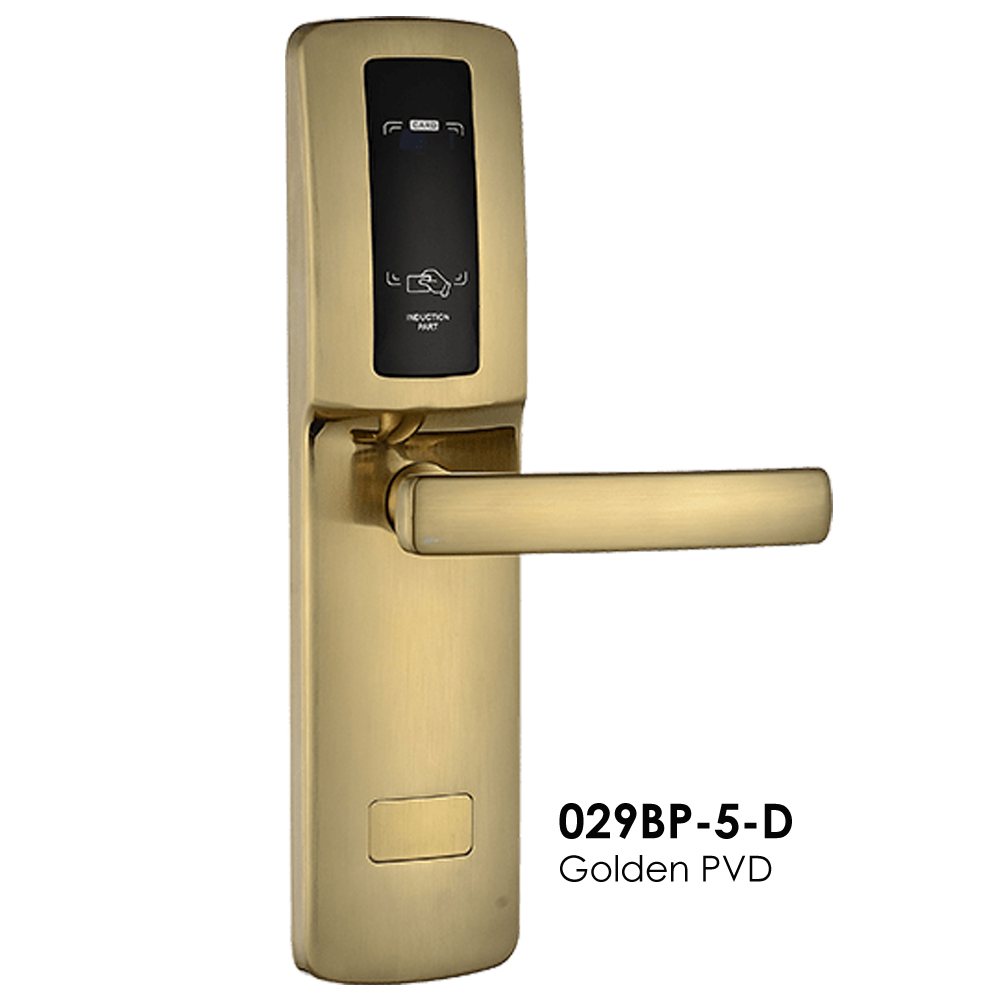

      2. Golden PVD
