Quick Overview

    More protection for the family with its DOUBLE IDENTIFICATION MODE.
    • Auto locking mode and passage mode
    • Multi-level user entry
    • Built-in Anti-theft function with alarm in cylinder cover
    • Audit trail possible
    • Voice prompt
    • Easy to change handle orientation
    • Applicable with European 9# mortise
    • Suitable for Residence, Commercial office, School, Government, Hospital, Bank
    Total User: 285 (fingerprint + code user + card user)
    Material: Zinc Alloy with Chrome plating or PVD plating
    Method of Fingerprint: Optical
    Sensor Speed: 1 second
    False Rejection Rate: <0.1%
    False Acceptance Rate: <0.001%
    Password Combination: 3 to 12 digits combination
    Mechanical Key Override: Yes
    Battery: 8 AA standard alkaline batteries
    Indication: Light, Sound (mute, beep or music optional)
    Deadbolt Indication: Yes
    Unlocking Record for Trail: Yes
    Low Voltage Warning: Yes
    Passage Mode for Meeting Room: Yes
    Static Consumption: 12uA
    Dynamic Consumption: 300mA
    Humidity: 20% - 80%
    Working Temperature: - 10°C - 60°C
    Handle Optional: NONE
    Packing: 4pcs/ctn, 18KG/ctn, 48*46*37cm
    1. Anti-theft Patent Guard against drill, picking and opening by technology
    2. Fits for 99% Doors Install Directly
    3. Alarm intelligently.
    There are 3 kinds of strong alarms under low voltage, not closing well and picking violently. It is also anti-water and anti-static.

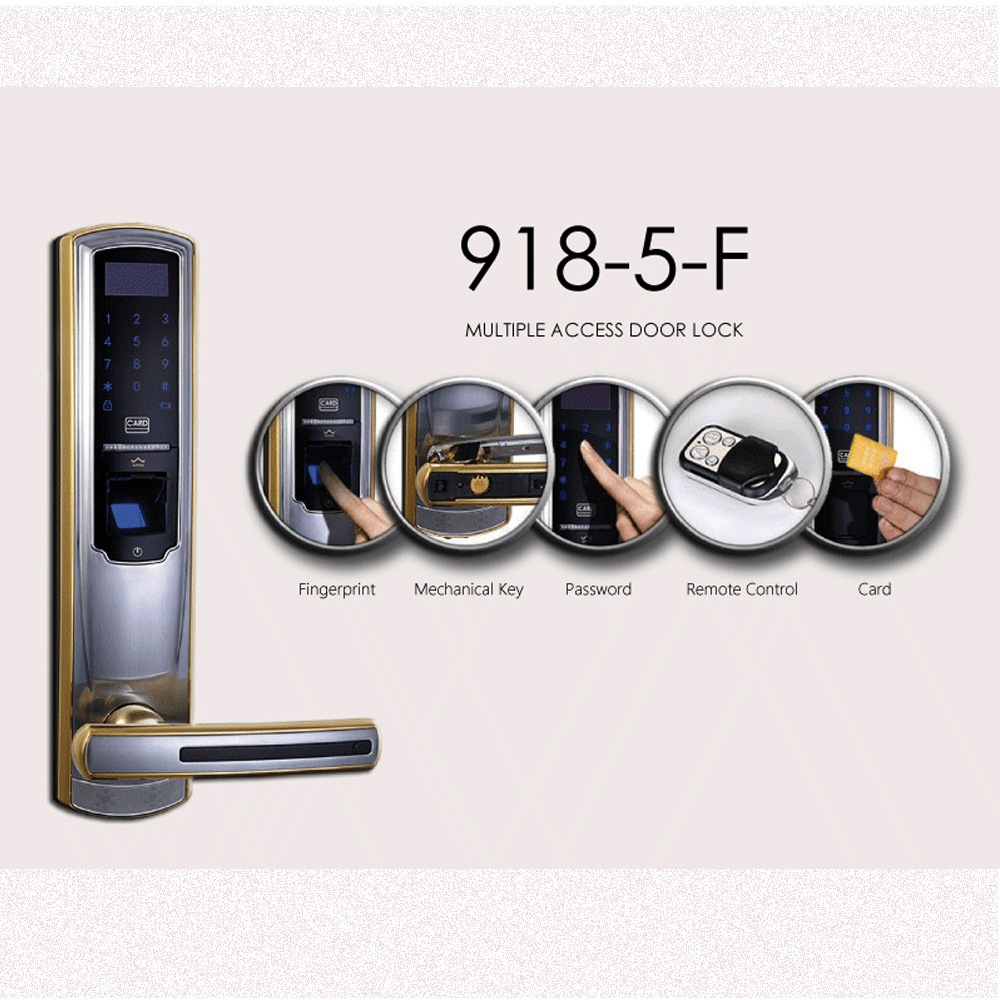

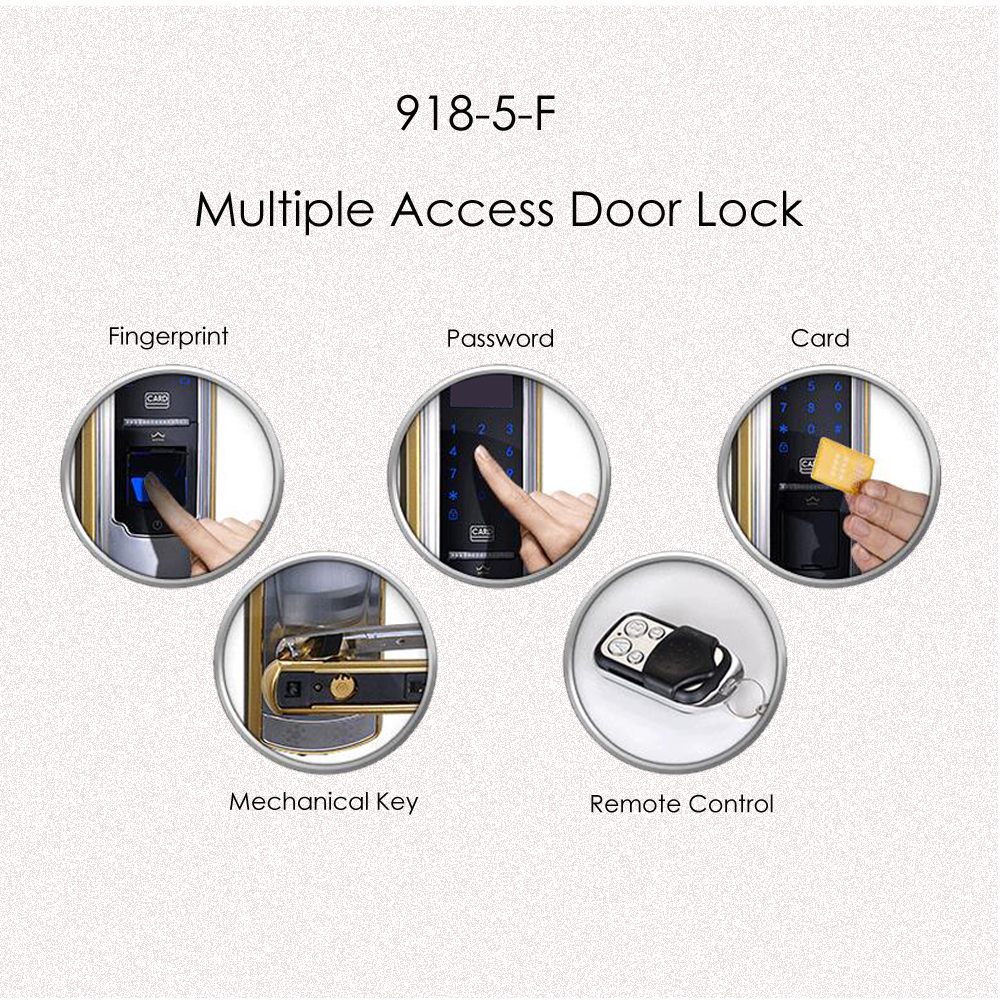

    4. Multiple Unlock Functions
    a. Card Access
    b. Fingerprint Access
    c. Password Access
    d. Mechanical Key Access
    e. Remote Control Access
    5. Double Identification Mode, Enhance Family Security
    More secure and safe. It needs two identifications when open the lock: Fingerprint + Password
    If you input password only or card, it will not open; therefore it will safer under this mode.
    6. Always Open Mode. Convenience for Shuttle In & Out
    It will be too troublesome by inputting the user every time
    Always open mode is the best solution
    After putting the correct user, long press "0"

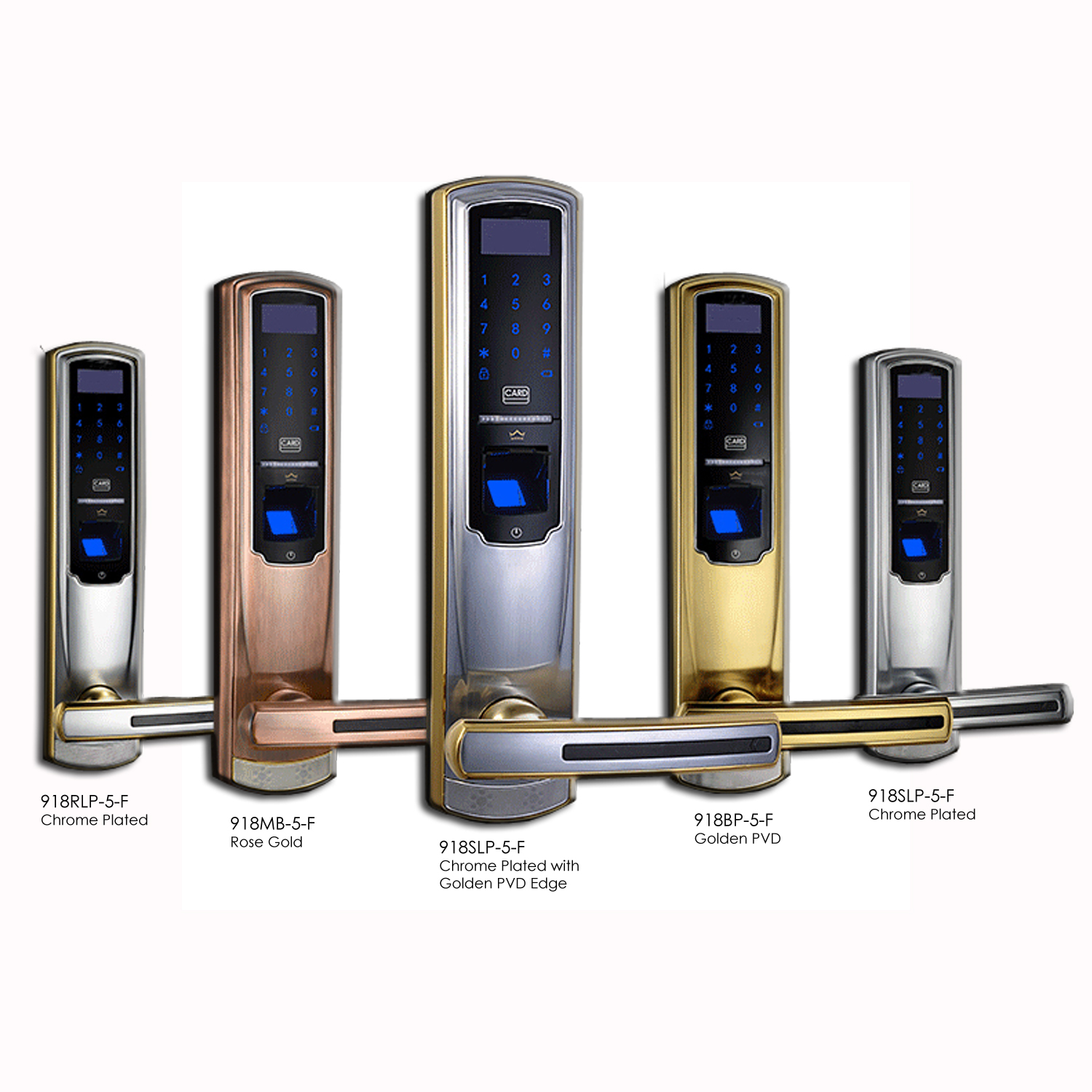

Available Colors in:

      1. Chrome Plated with Golden PVD Edge
      2. Rose Gold
      3. Chrome Plated with Golden PVD Edge
      4. Golden PVD
      5. Chome Plated
