WIRELESS SWITCHES

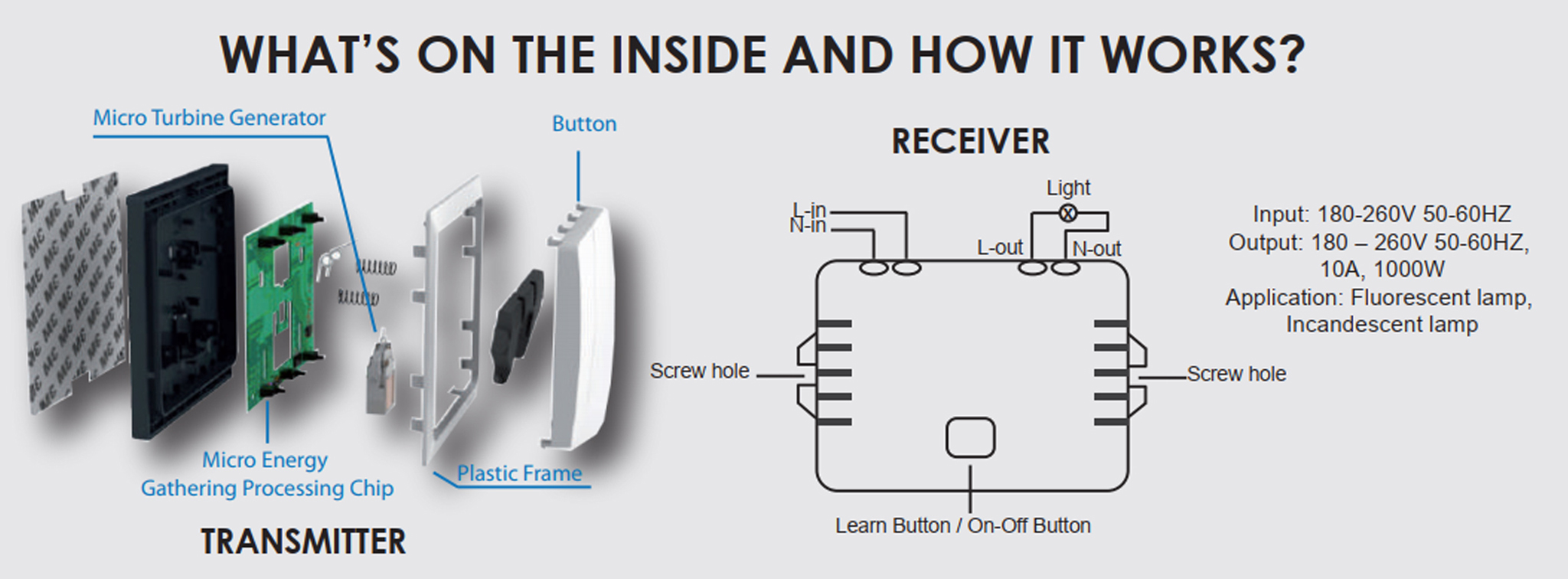

- Wireless Switch is a wireless radio transmitter without being connected with any control circuit or battery, which plays its role by matching with a wireless receiver. It can control the receiver, therefore it can remote-control the load (lights, fan, etc.) connected with the receiver.
- The innovative self-powered technology is used as a self-powered wireless switch, which can harvest the energy caused by the finger's pressing to send the radio signal. Therefore, the battery is not required, which can avoid the trouble of changing the battery and protect the environment.
WS2-WS3 - TRANSMITTER
- Power Supply: Press to generate electricity / Self-Powered
- Frequency: 433MHz
- Modulation Method: GFSK
- Temperature: 25°C - 70°C
- Humidity: 0 – 75% rh, no condensation

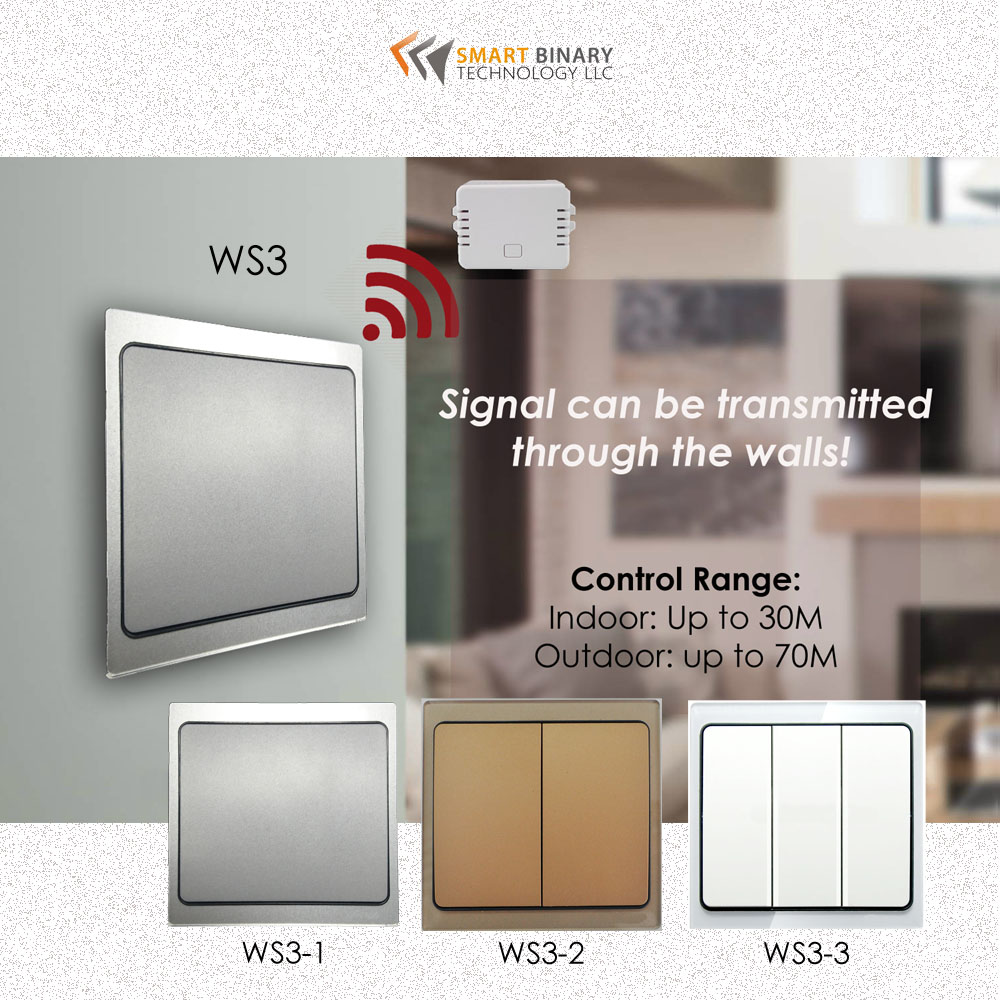

- Effective Distance: 30M Indoor, 80M Outdoor (can pass through wall)
- Enclosure: Fireproof PC
- Weight: 60g

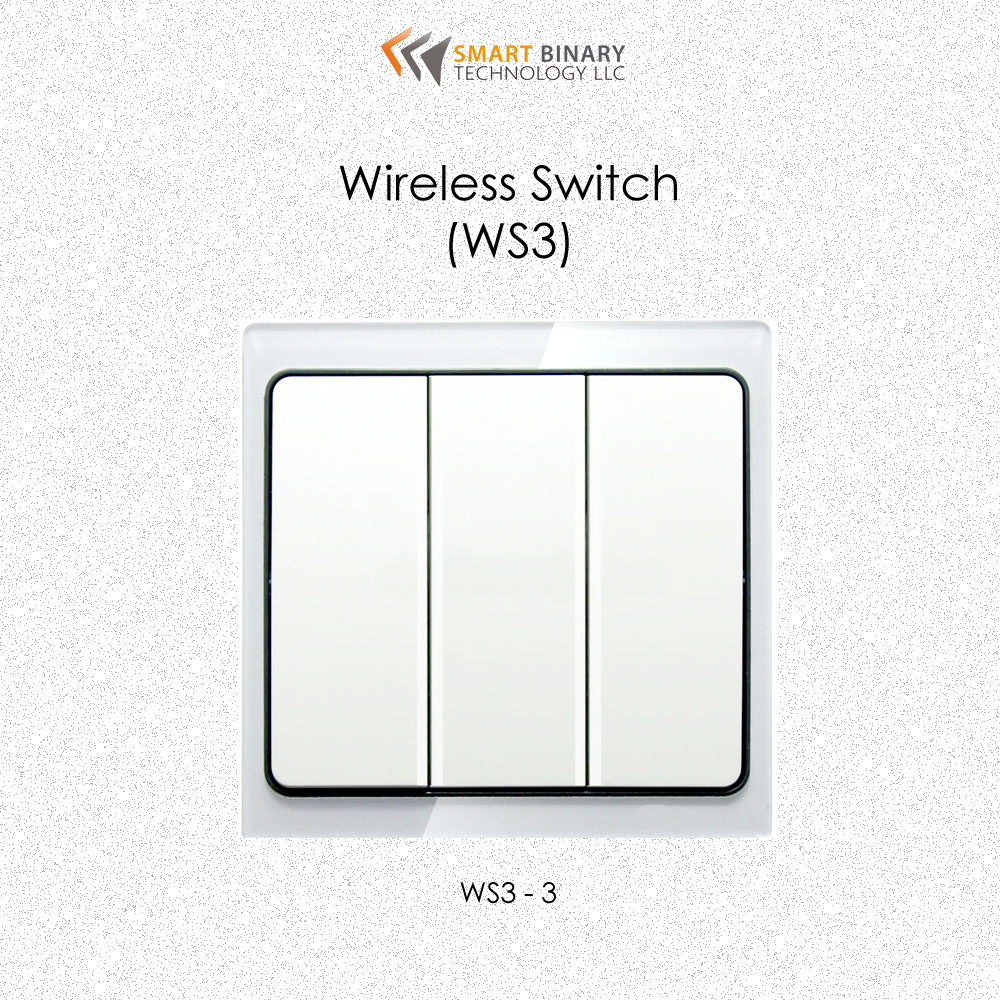

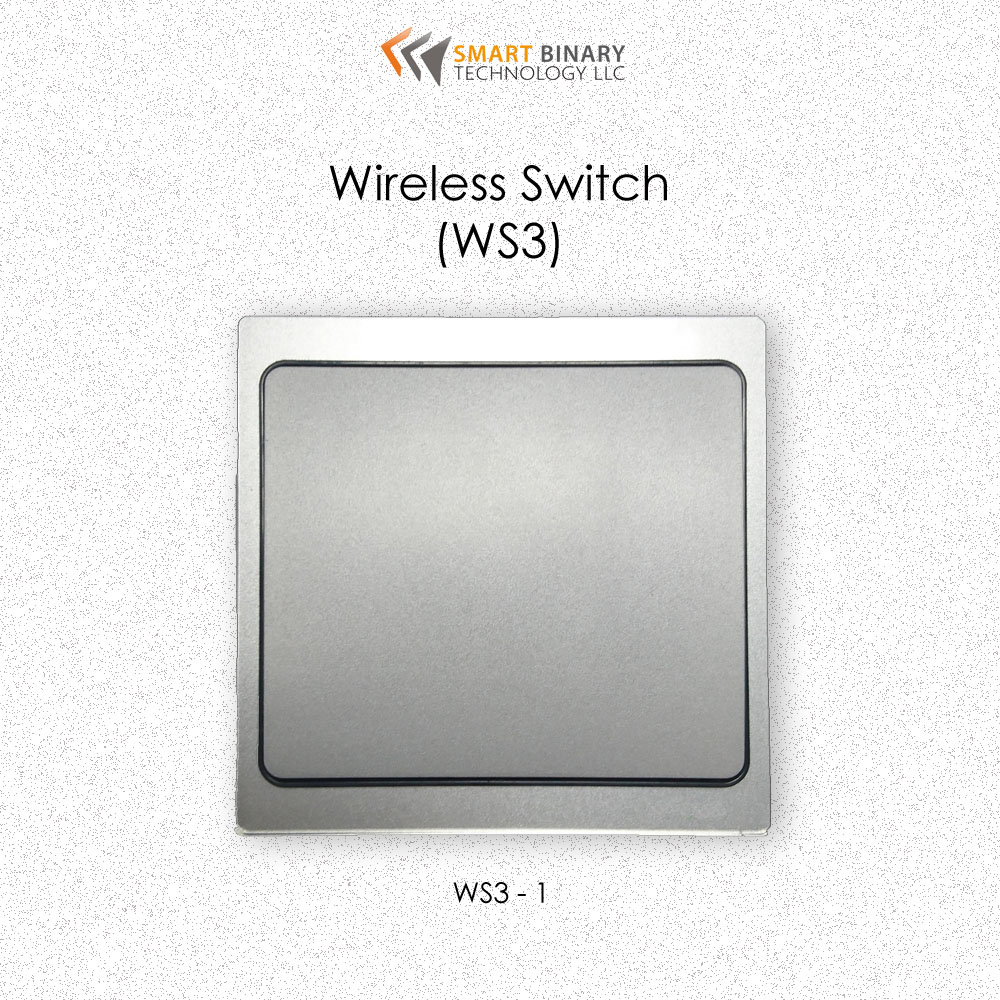

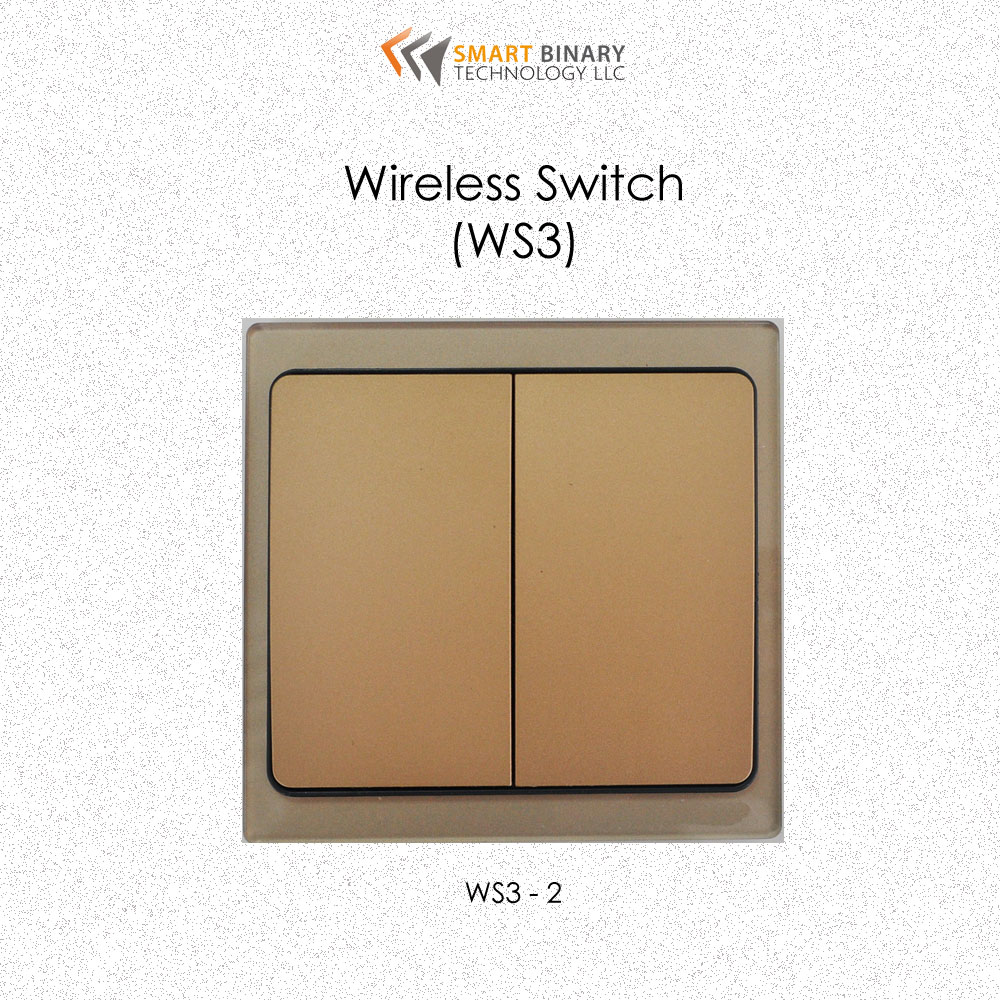

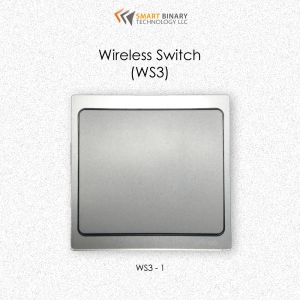

- Key Type: On/Off / 1 key / 2 keys / 3 keys
WS2-WS3 - RECEIVER
- Power Supply: AC 220V/230V
- Max Load: 5A
- Load of Filament Lamp: 500W
- LED Lamp: 100W
- Static Power: <1W
- Radio Frequency: 433MHz
- Radio Range: 30M Indoor, 80M Outdoor (can pass through wall)
- Working Temperature: -40°C - 60°C
- Humidity: 0 – 75% rh, no condensation
- Storing Environment: Temperature: -50°-70°
- Humidity: 0 - 75% RH, no condensation
- Enclosure: Fireproof PC
- Weight: 30g

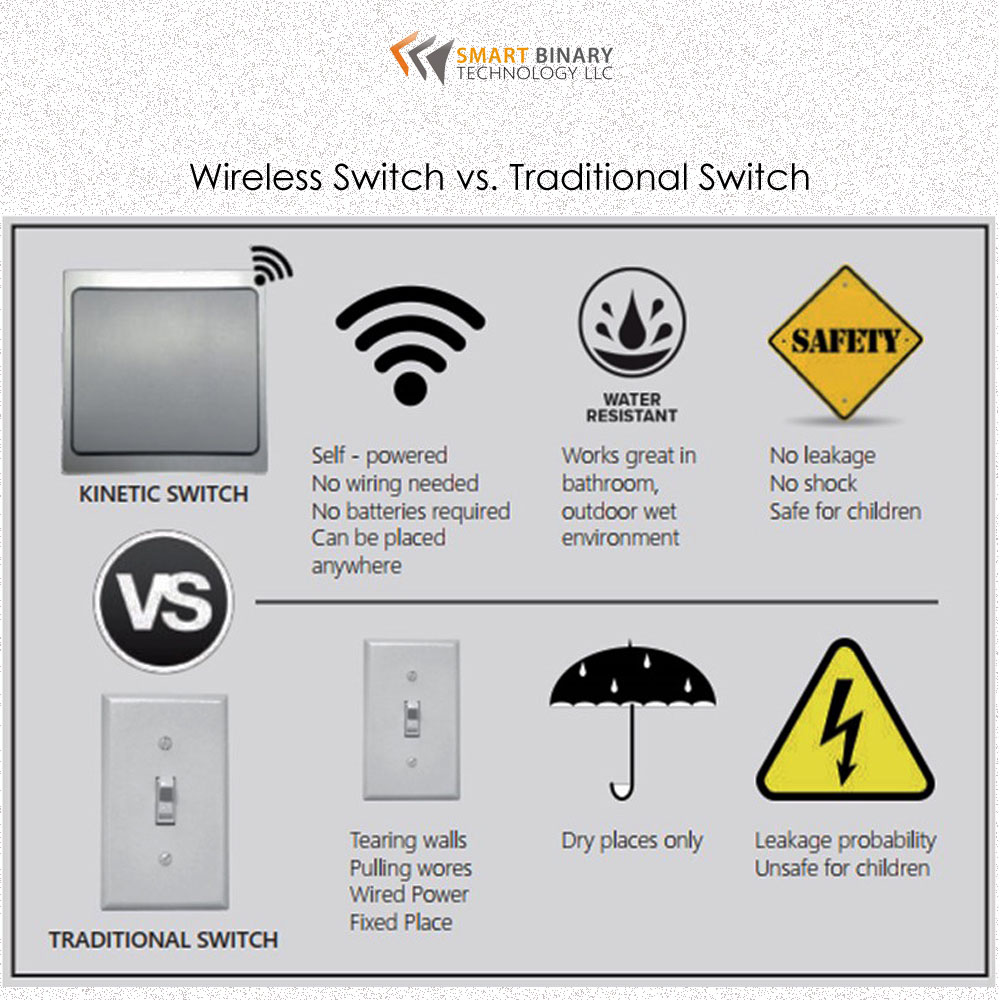

WIRELESS SWITCH FEATURES
- • ENVIRONMENTAL PROTECTION AND ENERGY-SAVING
- Self-powered. No cable connect. No battery. No solar panel inside. Save time, save cable & labor cost.
- • CONVENIENCE
- Easy installation and flexible move by double-side adhesive tape or screws
- No damage to wall, specialized for redecoration and house of timberwork
- • SAFETY AND RELIABILITY
- Fire-resistant, electric-prevention, lighting-protection, No radiation
- Reliable anti-interference function by the encryption codes
- • HIGH PERFORMANCE
- Be workable within 30meters inside house (through 2-3 walls) or 80 meters outside, no directional limit
- More than 200,000 time for press key
- Can endure high and low temperature
- • MULTIFUNCTION
- Available for single switch to single receiver, single switch to multi-receiver. (Maximum 10pcs), multi-switch to single receiver, multi-switch to multi-switch.
- Available colors in:
- 1. White
- 2. Silver
- 3. Gold
